Article Number:
*All-in-one solution for remote control via SMS *
Alerting – Acknowledgement – Remote control
Right on the phone or the PC
Application
Modern communication technology for harsh industrial environments
Facilities
- Linked unmanned systems via SMS with the outside world
- 100 message texts with 32 to 30 different receivers Variabken
- 10 filter text (passwords) for remote control
- of D-and E-net
- to Mobile Phone, PC-control room, fax and internet
- Alphanumeric LCD display for operator guidance
- knob for input on site
- 8 digital and 4 analogue inputs for direct alarm
- 4 outputs for remote control
- DIN rail with cap size

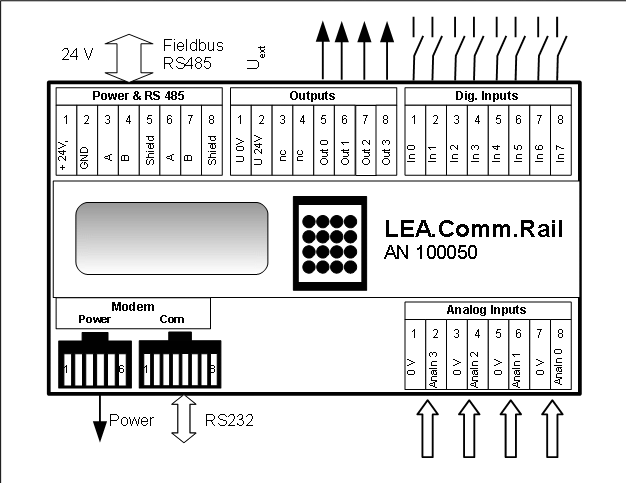

- All signals on connector terminals out
Functions:
- Alert
- field bus RS 485
- remote maintenance and remote control
- port RS 232
- data transmission
- SUCOnet connection
- remote
- Comli connection
- timing
- connection from Moeller Easy
- CAN connection
- MPI-Bus connection
- EIB connection
Insert *
* LEA.Comm.Rail is the ideal version for those looking for a simple and manageable solution. A solution that is still high safety demands.
* LEA.Comm.Rail is very easy to put into operation. voltage and create alarm can go off the first test. Could not be easier!
Technical Data:
Power supply:
24VDC, +/- 10% 500mA
When simultaneous switching with modem is to provide a safe additional power requirement.
Inputs and outputs:
8 digital inputs can trigger the alarms
as accessories:
6 digital outputs, which are set by SMS könnnen
4 analog inputs in the range 0 .. 10V input voltage, which can trigger alarms
Interfaces:
RS 232 V-24 interface to modem or PC
RS 485 or RS-232 bus interface
Implemented field buses:
SUCOnet
Comli
Easy
MPI bus
Other buses: CAN bus, Profibus, EIB, etc. via gateways
Software:
100 message texts with up to 160 characters
per text message up to 32 16-bit variables
30 telephone numbers, 10 password text
Version 1.xx Alert
Version 2.xx telecontrol
Version 3.xx data transmission
Options:
Firmware “easy”
Firmware “I / O”
Firmware “timing”
Firmware “Störungsüberwachug”
Firmware “counter input”
Firmware “Remote Management of analog values’
Editing software:
LEA Commander PC software for entering message texts and phone numbers.
Body:
DIN rail with cap size
Dimensions:
160 × 90 × 60mm
Weight:
400g
Modem:
radio Modem
Accessories:
With memory expandable up to 400 message texts
Cable set LEA.Comm: PC cable modem and antenna for wireless modem adapter: Magnetic connection cable with special antennas and battery backed up supply: AC adapter and battery 12VDC / 1.3Ah is enough for 4h Notbertrieb
