Versatile control panel mounting, robust, step motor driver connection

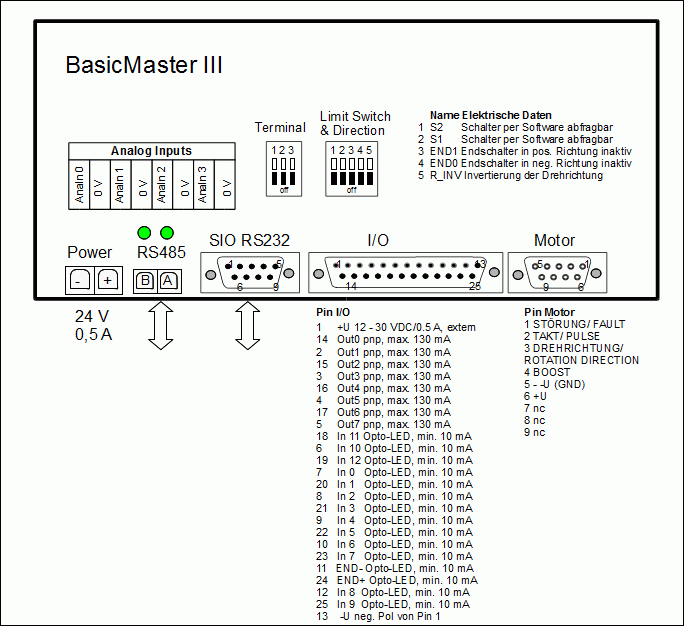

BasicMaster III is a complete, general purpose control computer for front mounting.
Water-resistant surface and a sturdy metal back cover to protect in harsh industrial environments. Front panel shows a membrane keyboard with 21 keys and a large illuminated LCD display with 2 × 16 characters. Reverse side of the RS232 and RS485 ports, opto-isolated inputs and outputs and a step motor interface are arranged.
For practical use, a complete stepper motor connector is installed, with pulse and direction signal, with a limit switch inputs and with powerful software.
Versatile – Complete – BasicMaster is multi-talented
- Basic-Coprozessor
- Intelligent operating unit
- Human-Maschine-Interface (HMI)
- Hilfssteuerung
- Schrittmotorcontroller
- Terminal
The BasicMaster III can be programmed in the “everyman language” BASIC with a normal PC. Thus, very complex functions can be realized. The finished program is burned into the EEPROM – easier not to go. Confirm many hundreds of applications worldwide das.
All connections are pluggable, a metal hood protects against interference. Thanks to high-level language intelligence expects the BasicMaster * III * with floating point numbers and can create convenient user dialogs.
Technical Data:
Power supply:
UB = 20 – 28VDC, 250mA
Inputs:
13 optically isolated inputs, 12 – 24V /> 5mA
4 analog inputs
2 limit switch inputs
DIL switch 8-bit polled by software
Points:
8 outputs, MOS relays, 300 mA
Stepper motor interface with clock, boost, towards the exit
Interfaces:
Serial 0: RS232 (this is also programmed)
Serial 1: Field bus
Optional RS232 or RS485 (half duplex)
Display:
Large alpha-numeric LCD 4×20 characters
Data storage:
32 MB RAM + 32 MB EEPROM
Program Memory:
32 kB EPROM or EEPROM
Operating System:
MOTRON operating system + advanced Intel-BASIC
Housing:
Front mounting housing
Plastic front and 213 × 125mm
Base metal 179.4 × 109.2 × 65mm
Temperature range:
0 .. + 50°C
Development Environment:
Programmed from any PC in BASIC.
The finished program can be stored in an EEPROM.
Control sequences, dialogues and data storage are possible.
The stepper motor is running in the background.
Programming support:
With MOTRON development tools can quickly and effectively the first applications to be realized.
Under www.motron.de the software can be loaded ProgTool.
